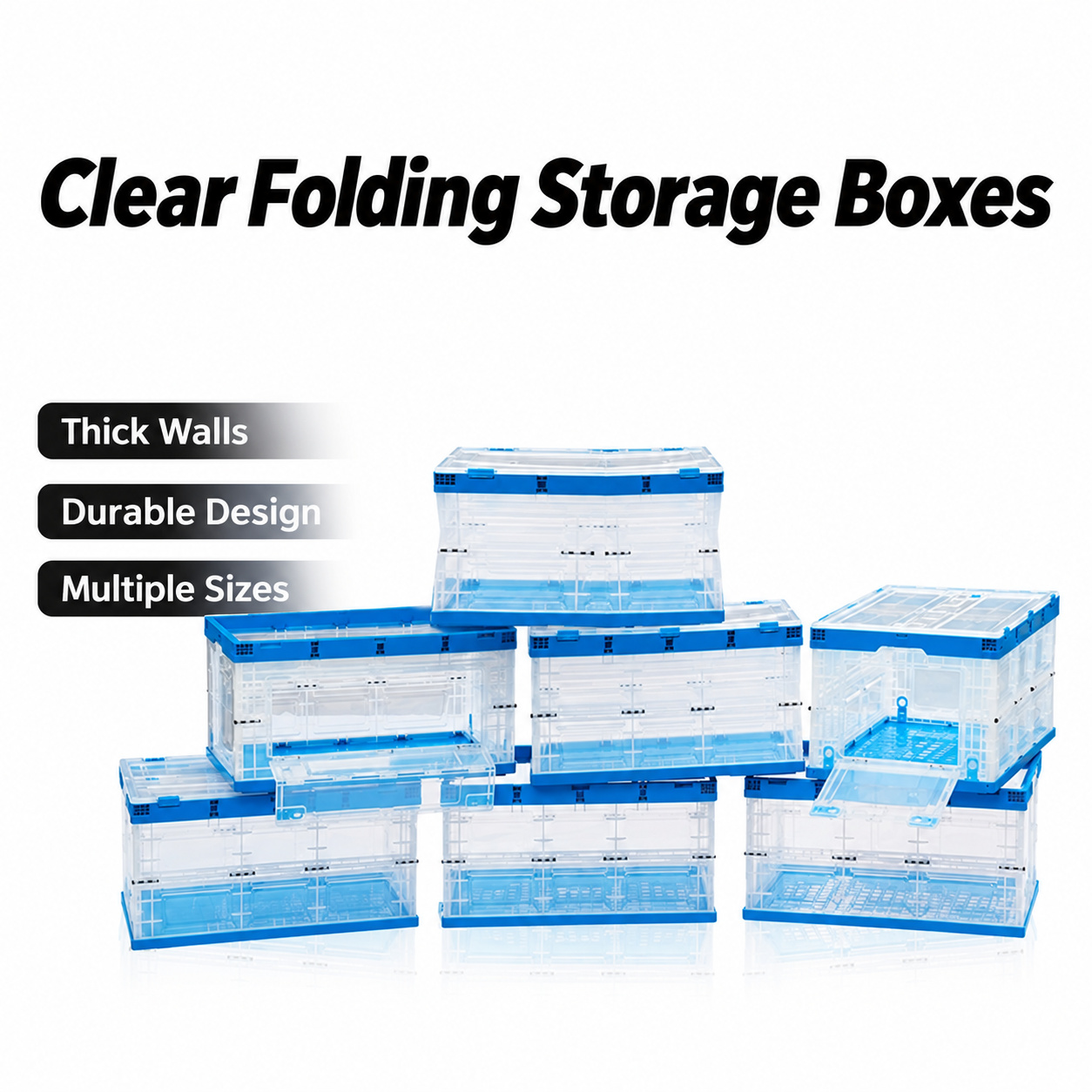

Clear storage for factories and warehouses
Keep parts, supplies and work-in-progress organized with clear folding storage boxes. Transparent panels make it easier to identify contents during picking, replenishment and internal transfers, while the blue frame provides a defined grip and support around the box.

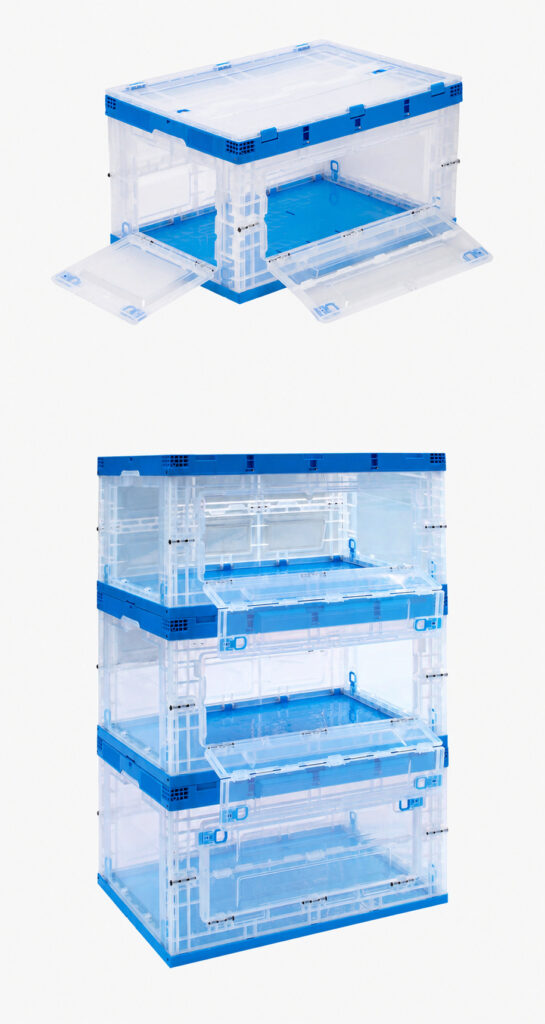

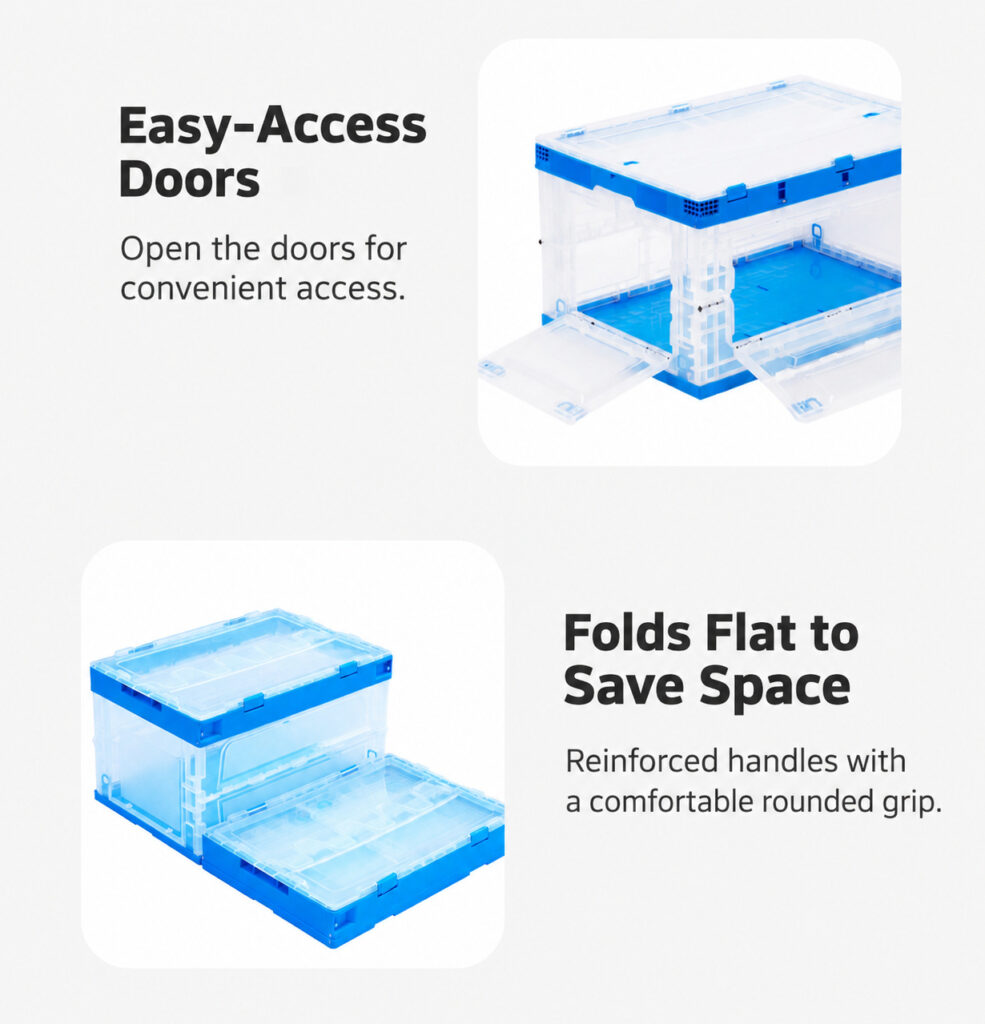

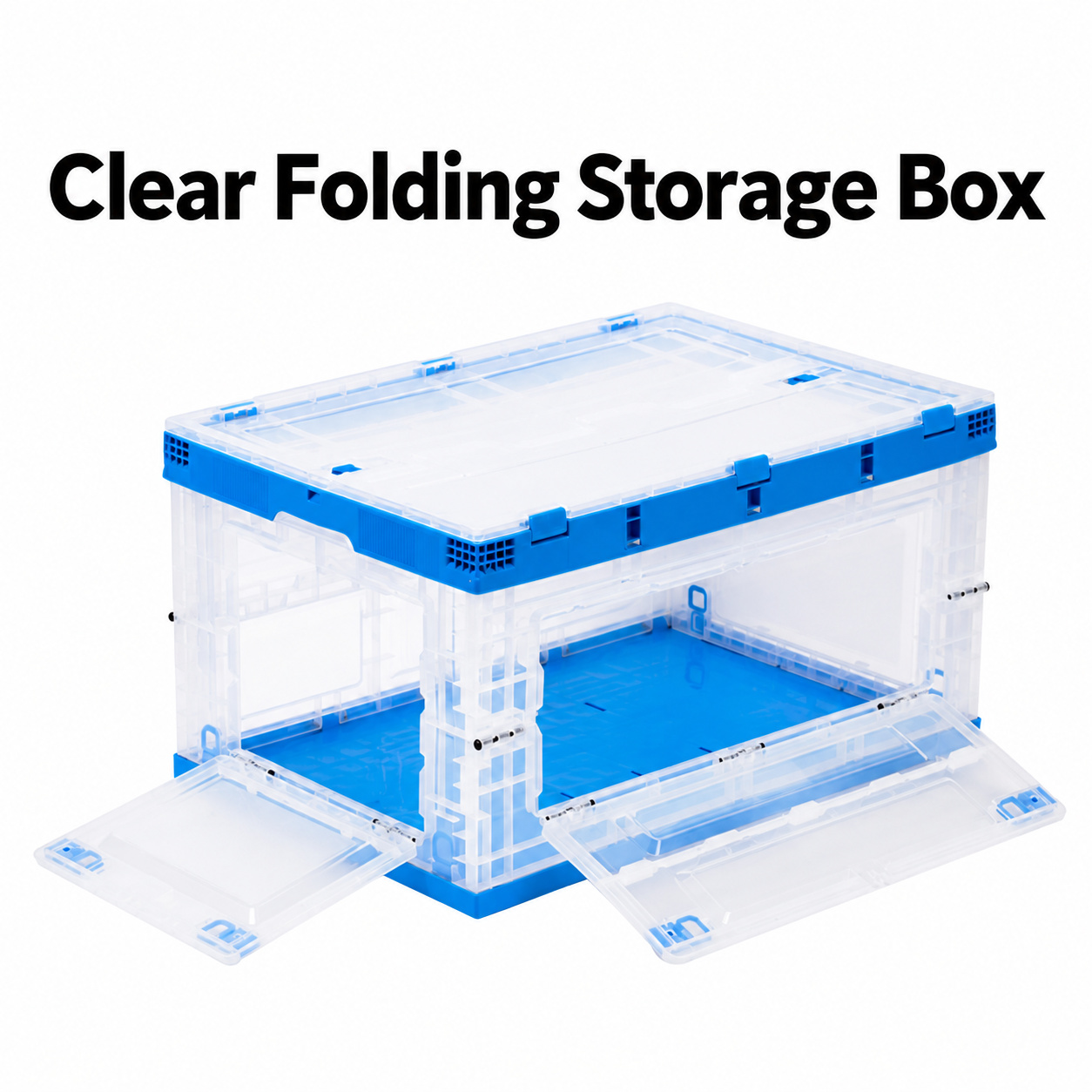

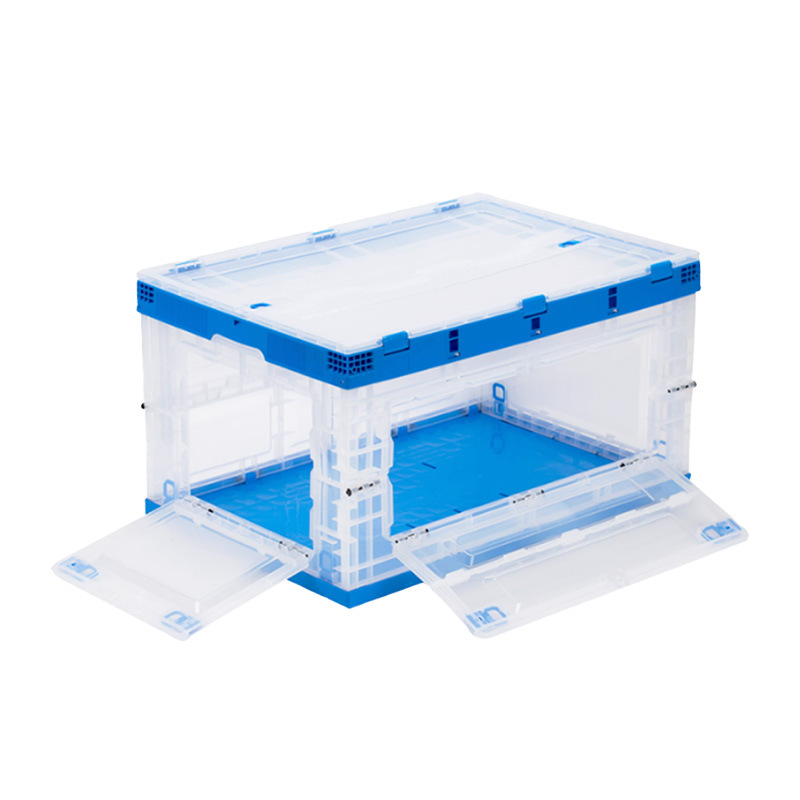

Access contents without unpacking the stack
Choose top-access, long-side-door, short-side-door or dual-door configurations to suit your shelving and handling process. Side-access models let staff reach stored items from the front or end of the box. Lid availability depends on the selected model.

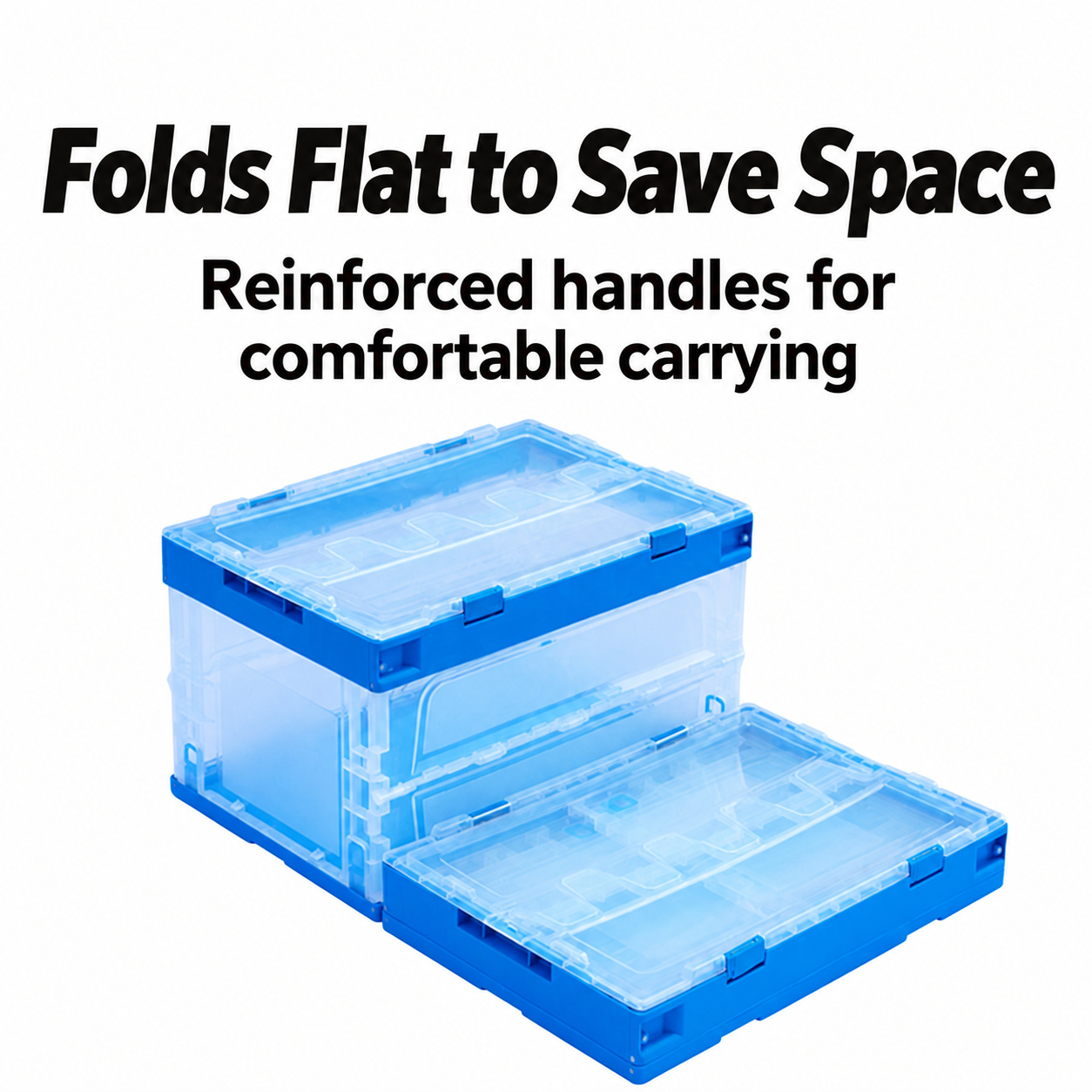

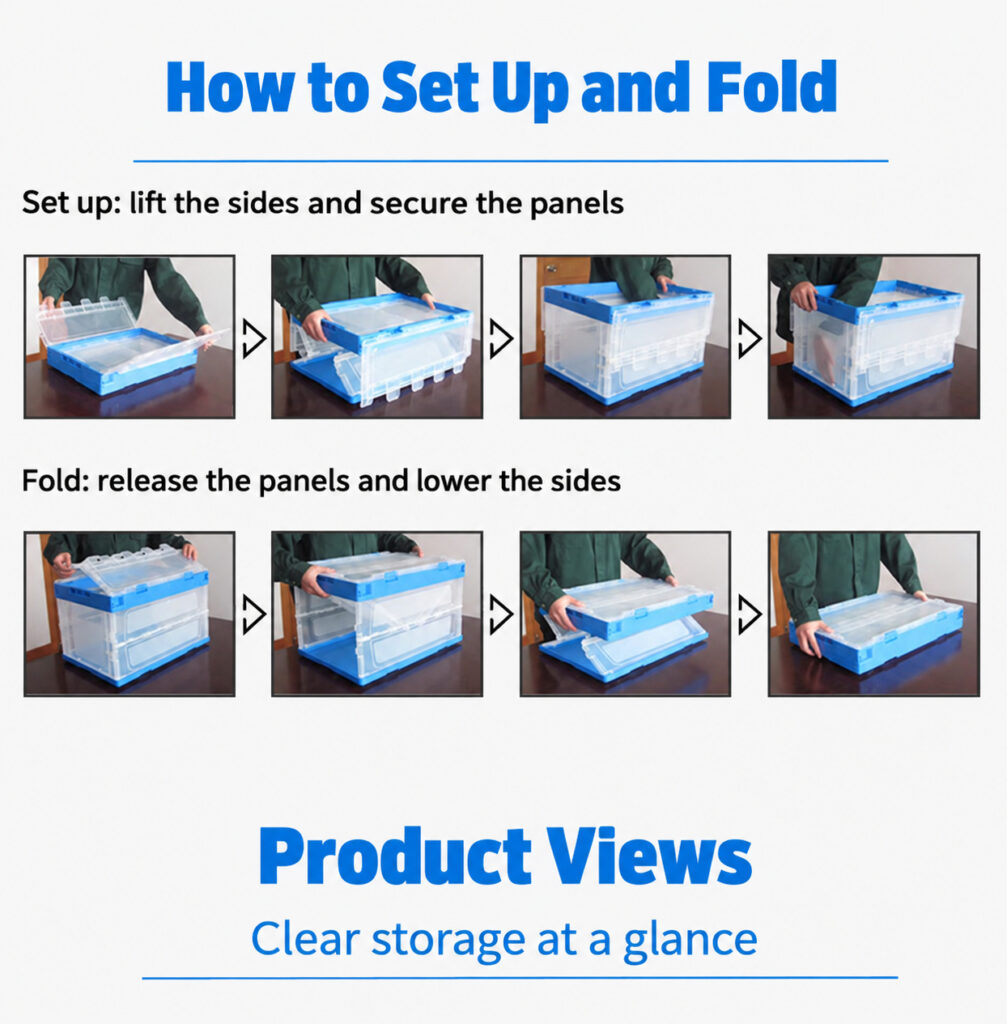

Fold empty boxes flat
Lift the sides and secure the panels to set up the box. When empty, release the panels and lower the sides to fold it down. The collapsible design reduces the space needed for storing empty containers and organizing return journeys within your facility.

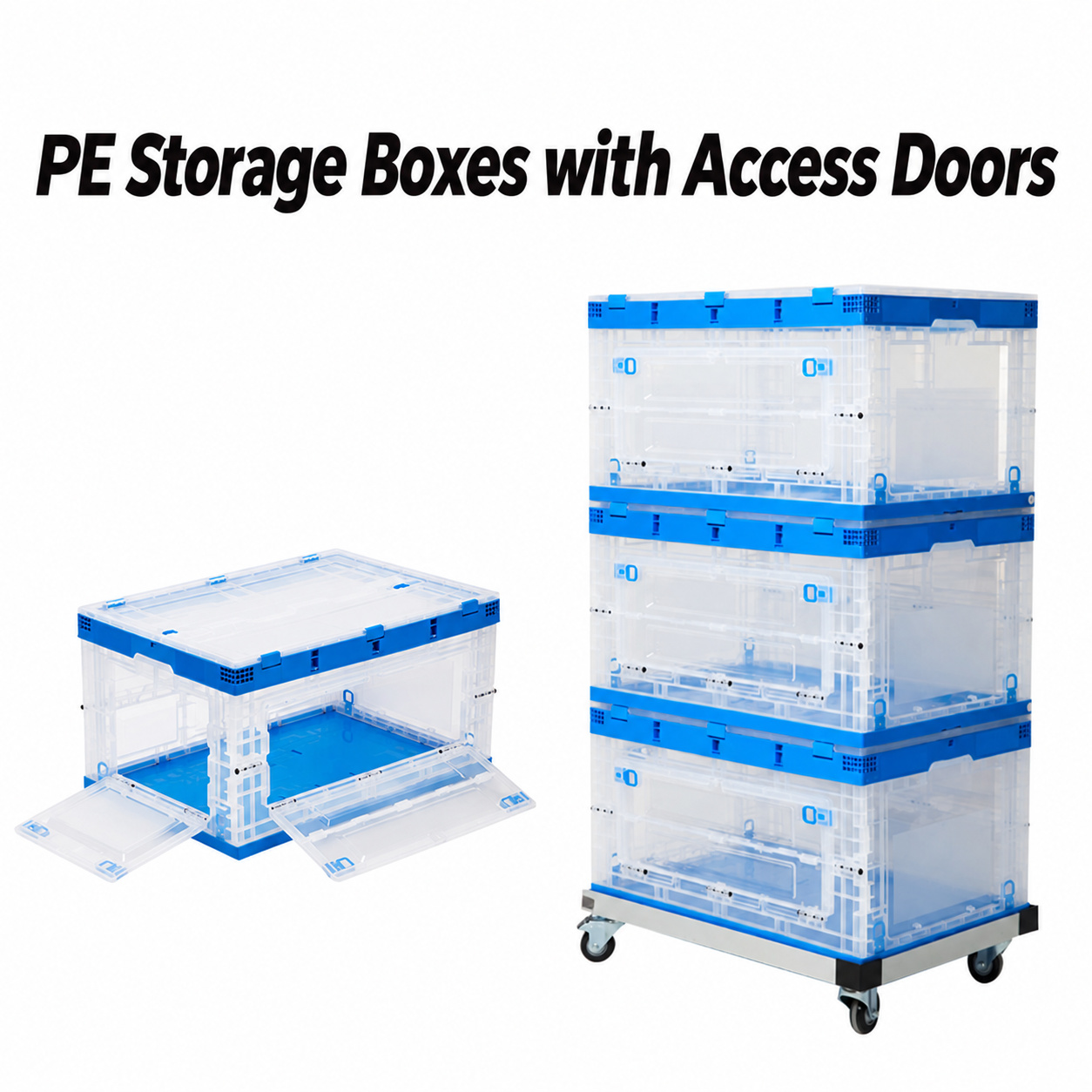

Optional wheeled dolly for internal transfers
A compatible low-profile wheeled dolly can be supplied for moving boxes around factories, warehouses and picking areas. Tell us your chosen box footprint, intended load and floor conditions so we can confirm the suitable dolly configuration. The dolly is an optional accessory; specify it when requesting your quotation.

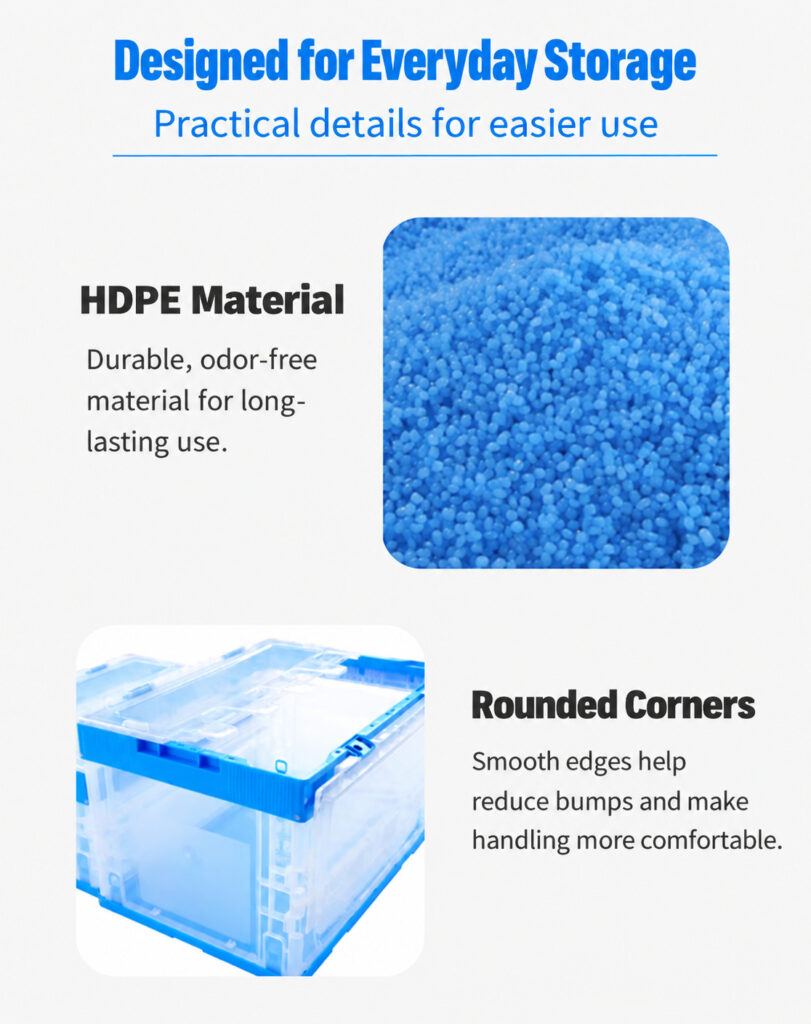

HDPE construction and practical handling details
- HDPE material, identified in the supplied product specifications.
- Reinforced wall and frame design for reusable storage.
- Rounded corners and integrated grips for handling.
- Surfaces designed for routine cleaning.
- Stackable configurations for organized storage.
Permitted load, loaded stacking height, dolly capacity and application suitability must be confirmed for your selected configuration. The supplied specification images show five-layer stacking; this is not a load rating.
Models and dimensions
All dimensions below are in millimeters, listed as length × width × height. Use the drawing links to review each configuration.
| Model / drawing | Outer size (mm) | Inner size (mm) | Folded height (mm) | Configuration |
|---|---|---|---|---|

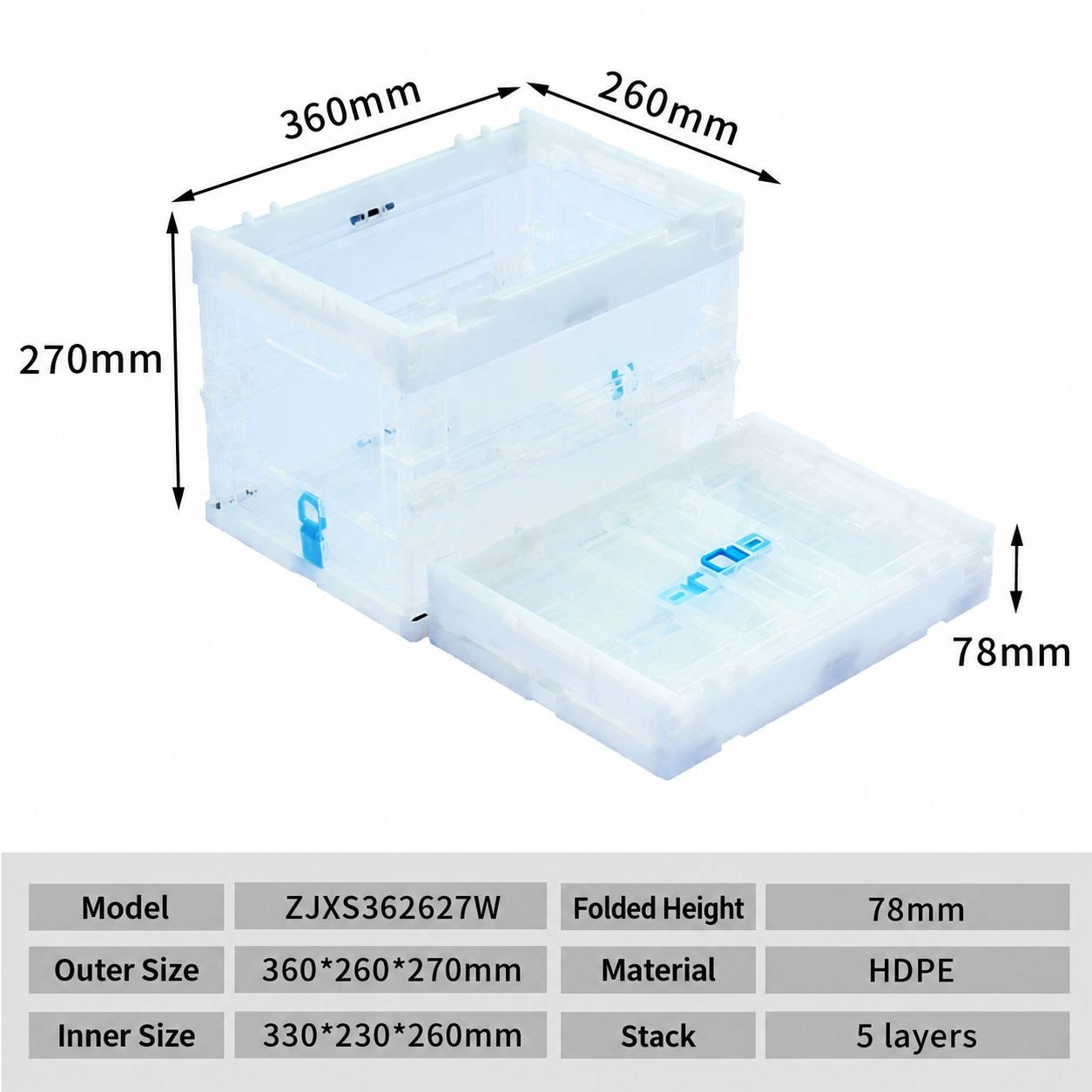

| ZJXS362627W | 360 × 260 × 270 | 330 × 230 × 260 | 78 | Standard |

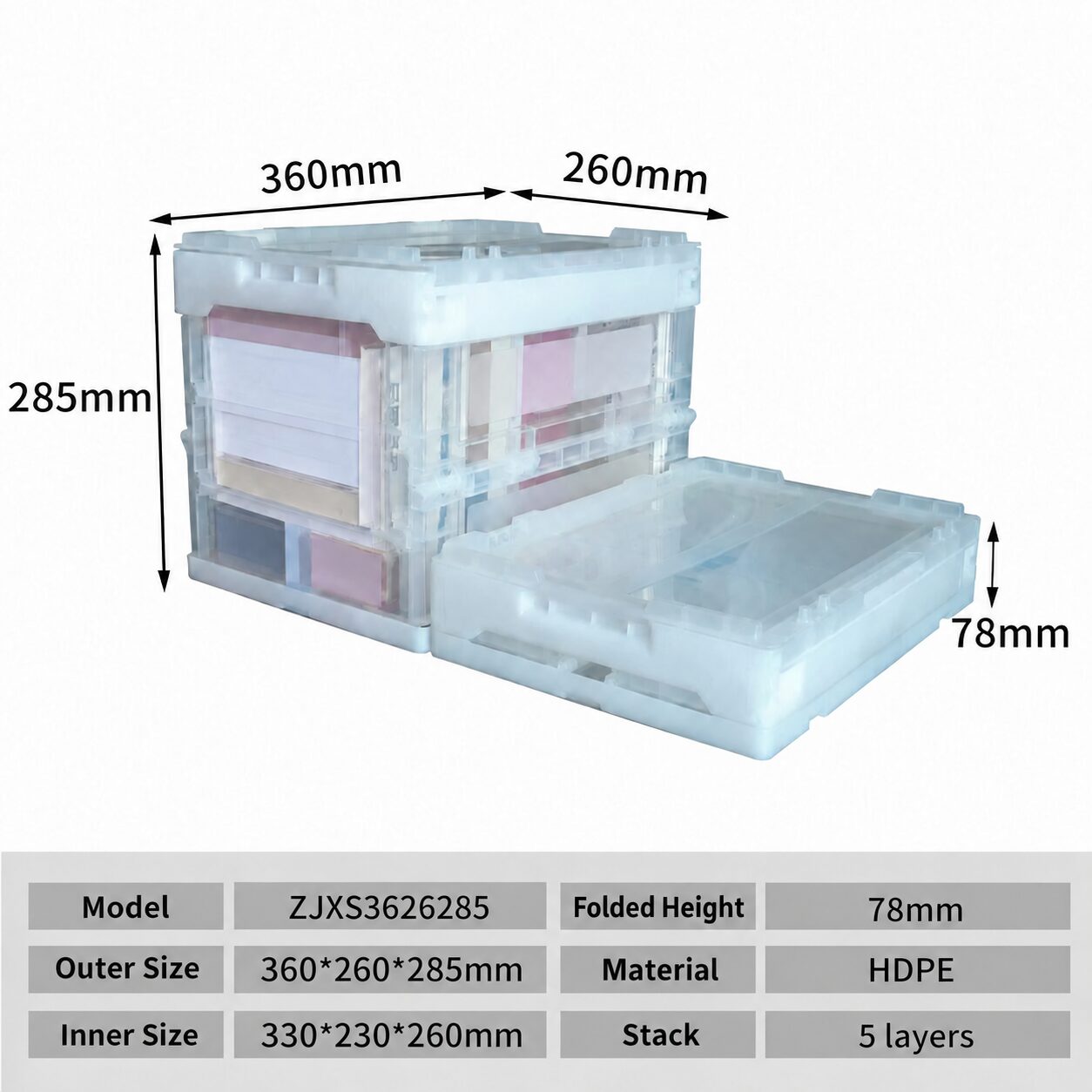

| ZJXS3626285 | 360 × 260 × 285 | 330 × 230 × 260 | 78 | Lidded configuration |

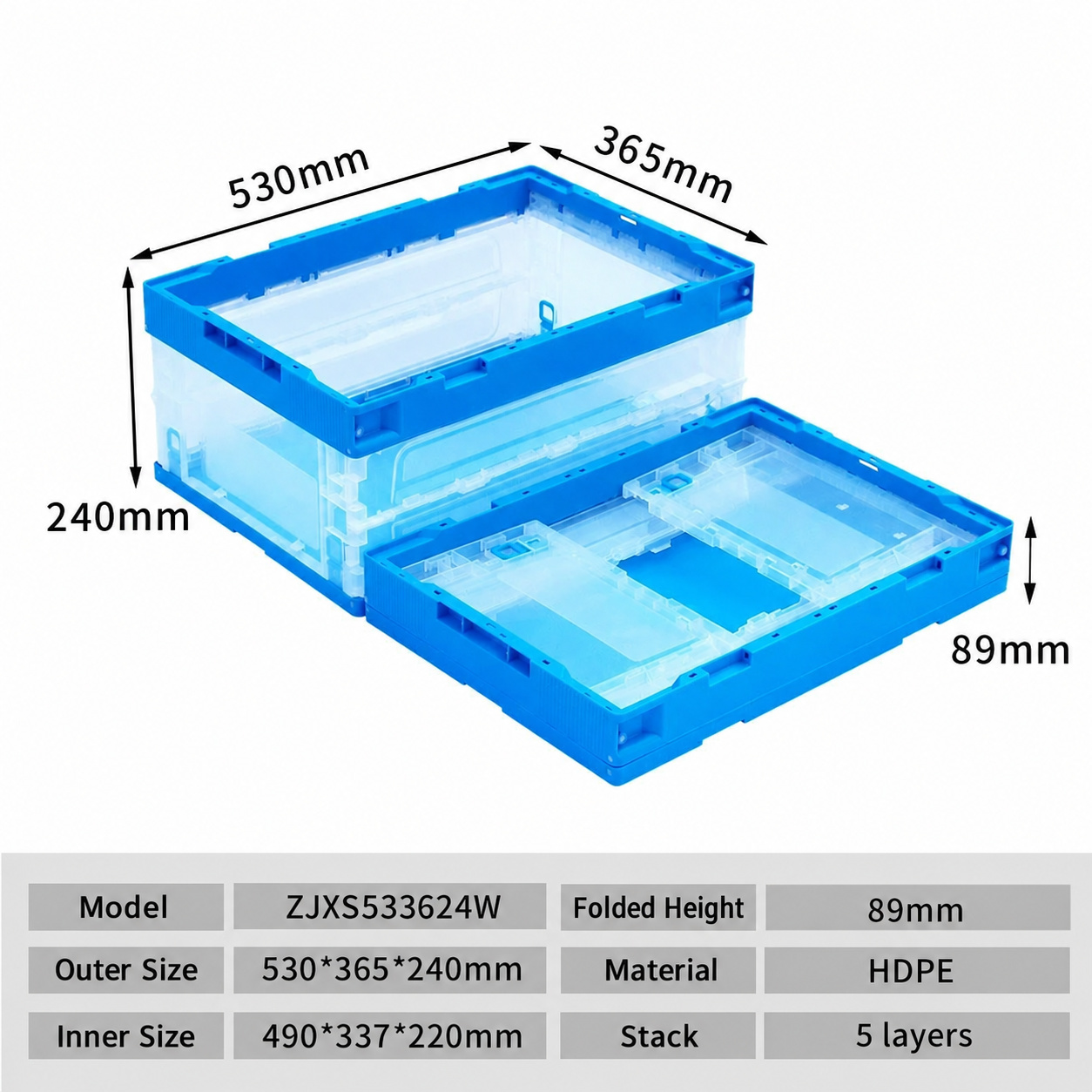

| ZJXS533624W | 530 × 365 × 240 | 490 × 337 × 220 | 89 | Standard |

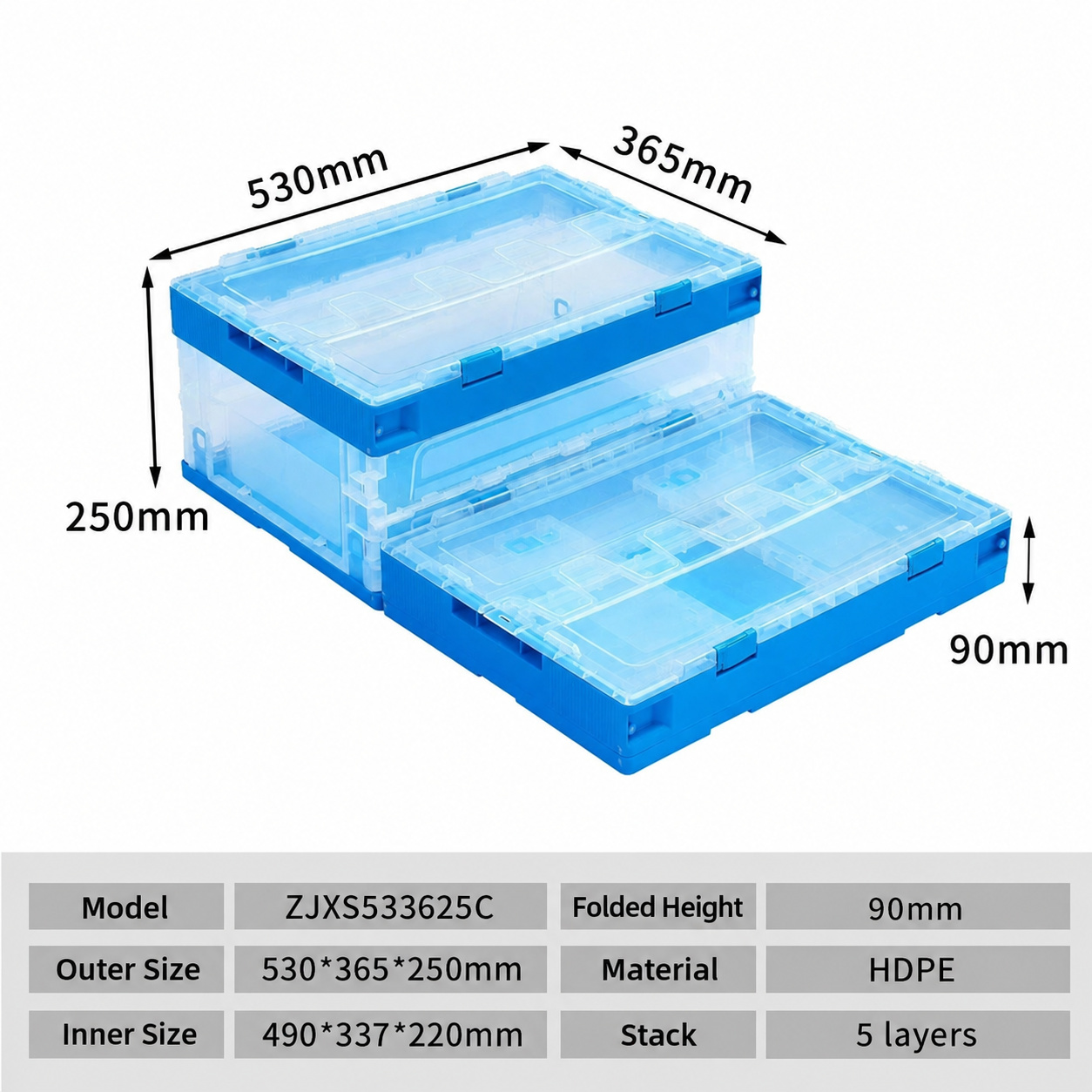

| ZJXS533625C | 530 × 365 × 250 | 490 × 337 × 220 | 90 | Lidded |

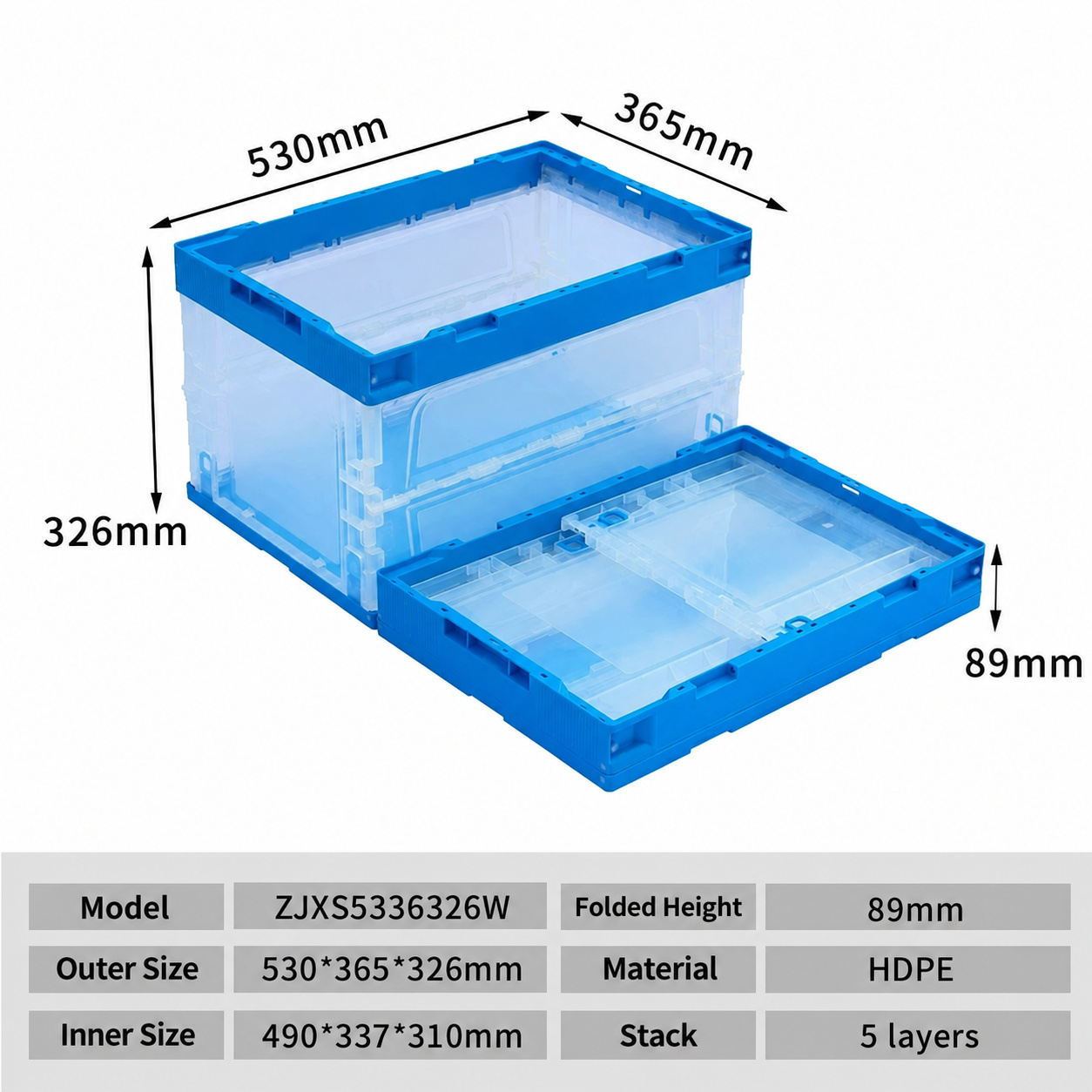

| ZJXS5336326W | 530 × 365 × 326 | 490 × 337 × 310 | 89 | Standard |

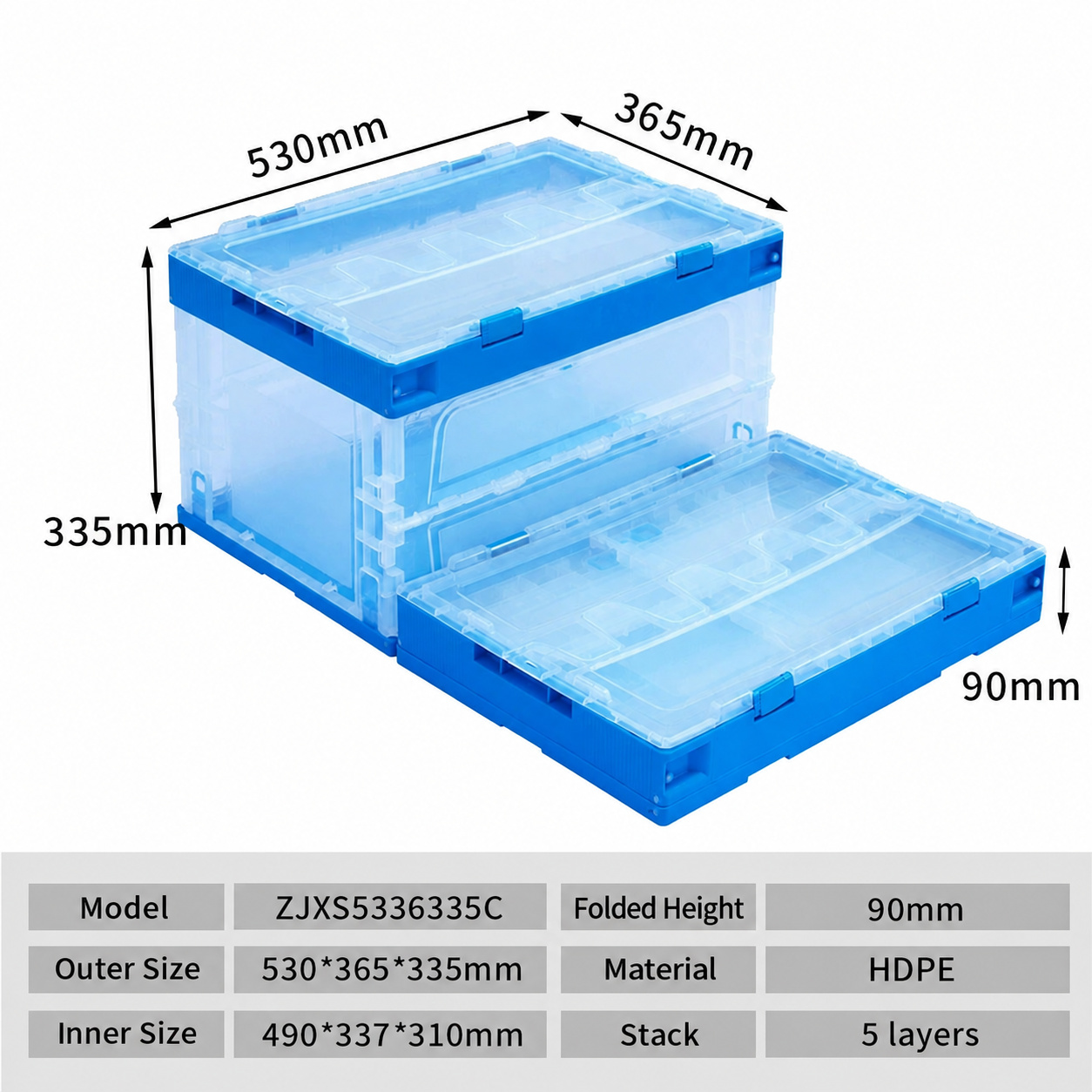

| ZJXS5336335C | 530 × 365 × 335 | 490 × 337 × 310 | 90 | Lidded |

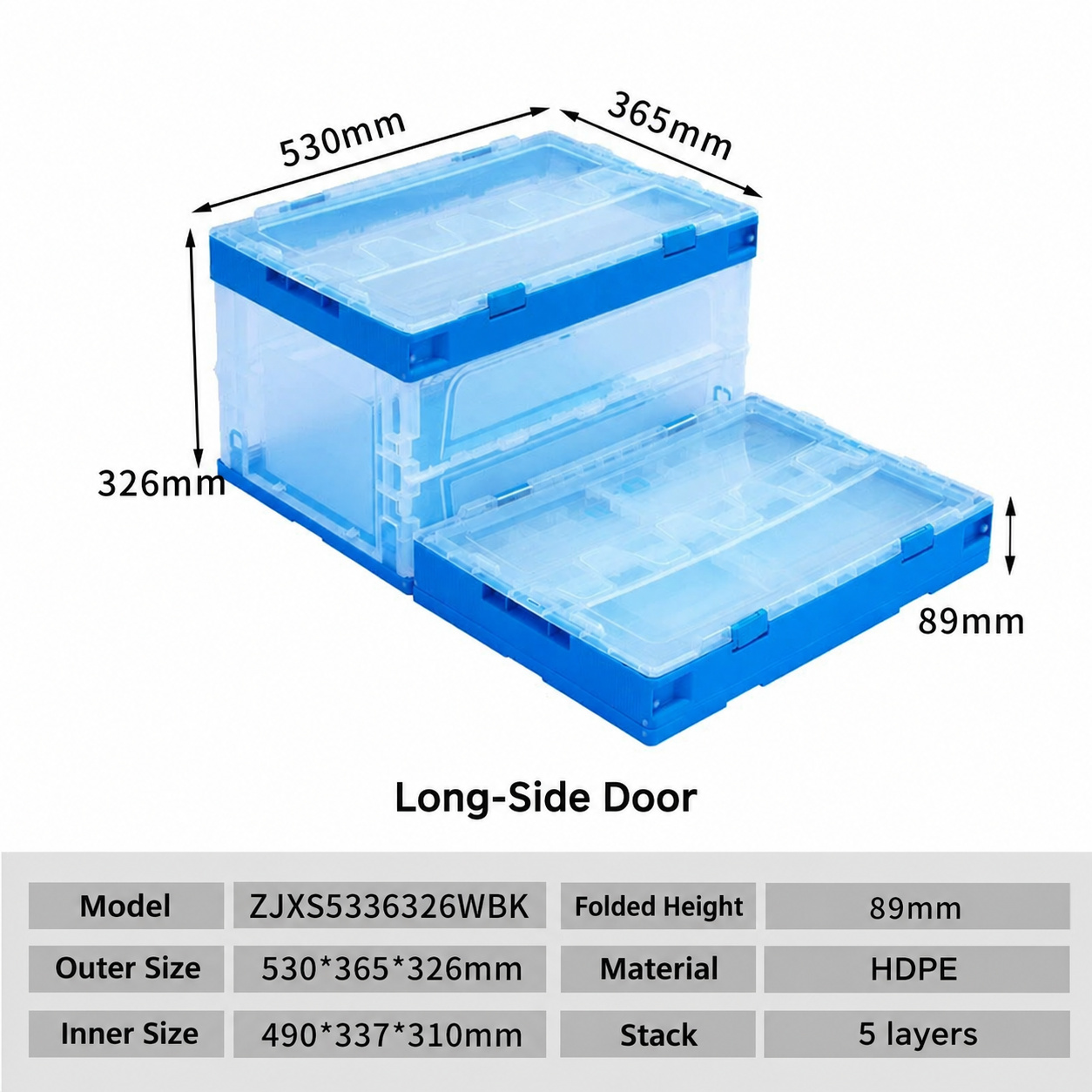

| ZJXS5336326WBK | 530 × 365 × 326 | 490 × 337 × 310 | 89 | Long-side door |

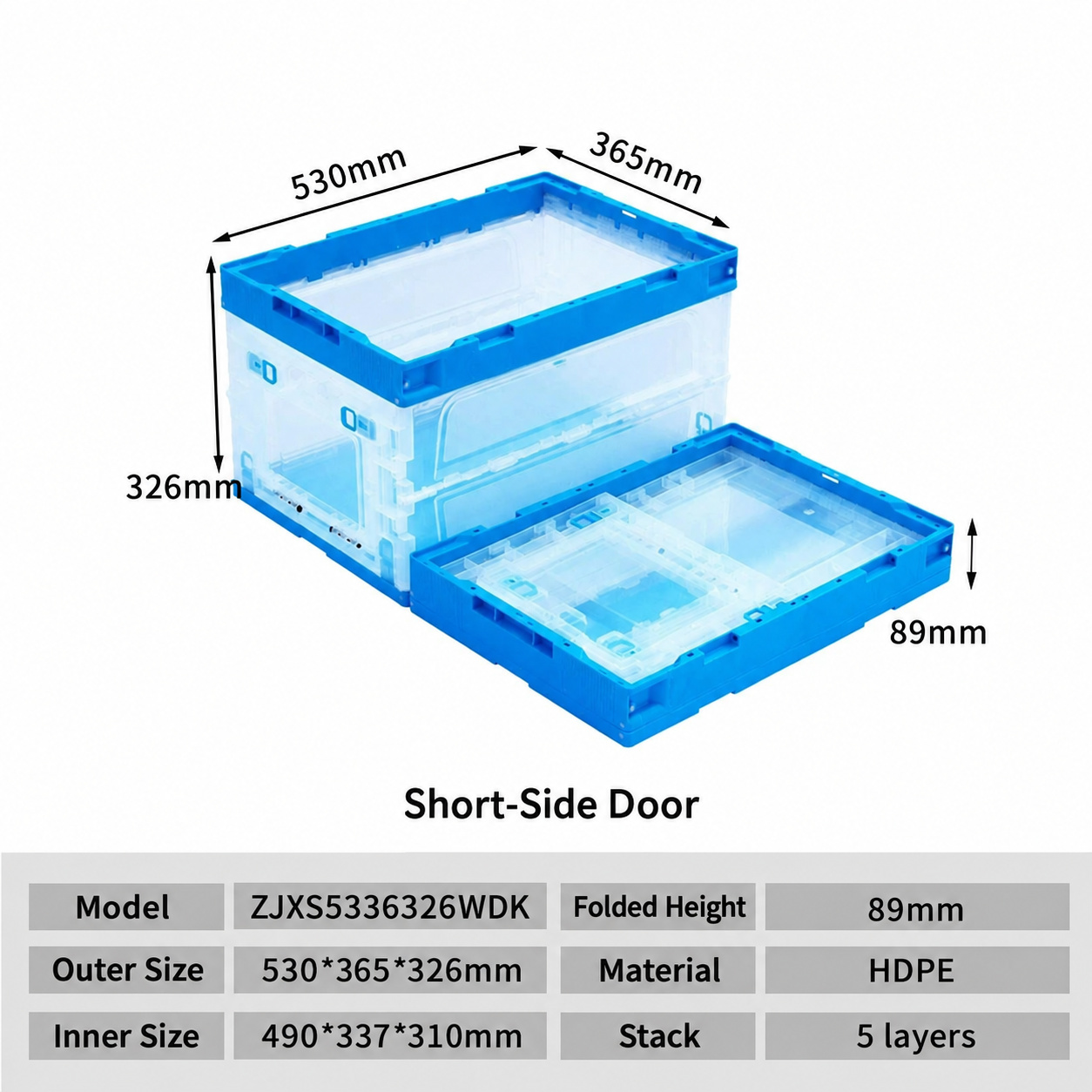

| ZJXS5336326WDK | 530 × 365 × 326 | 490 × 337 × 310 | 89 | Short-side door |

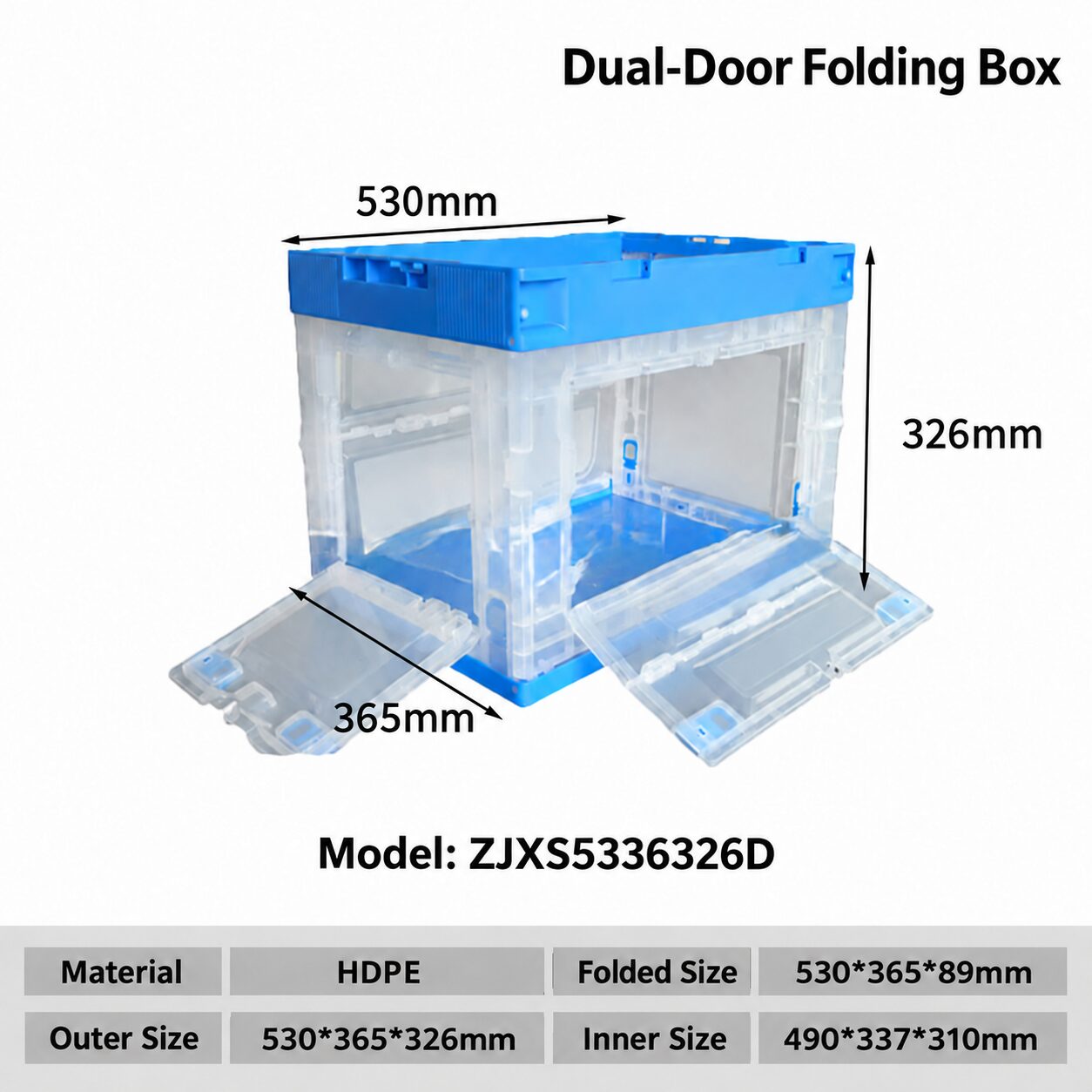

| ZJXS5336326D | 530 × 365 × 326 | 490 × 337 × 310 | 89 | Dual-door |

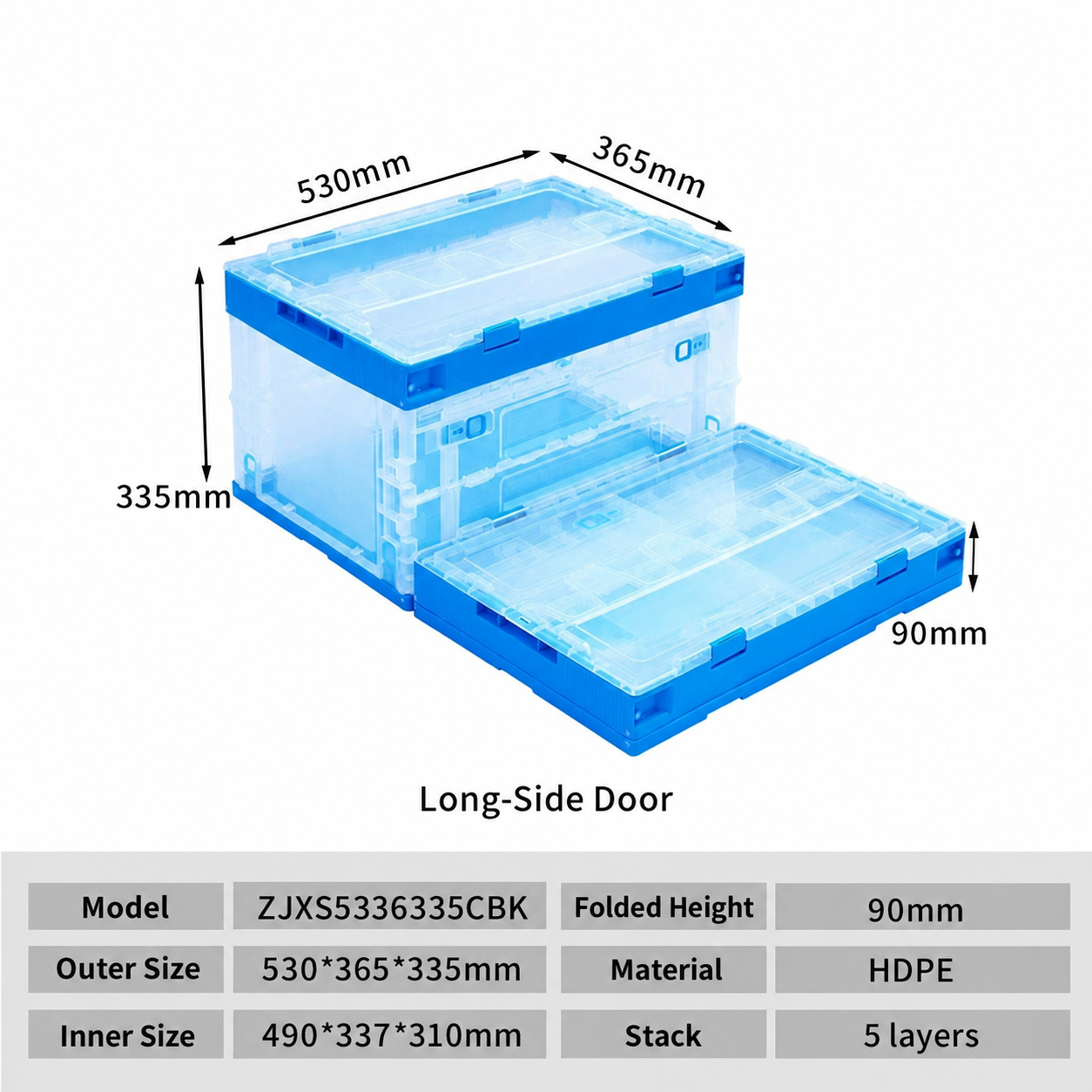

| ZJXS5336335CBK | 530 × 365 × 335 | 490 × 337 × 310 | 90 | Lidded, long-side door |

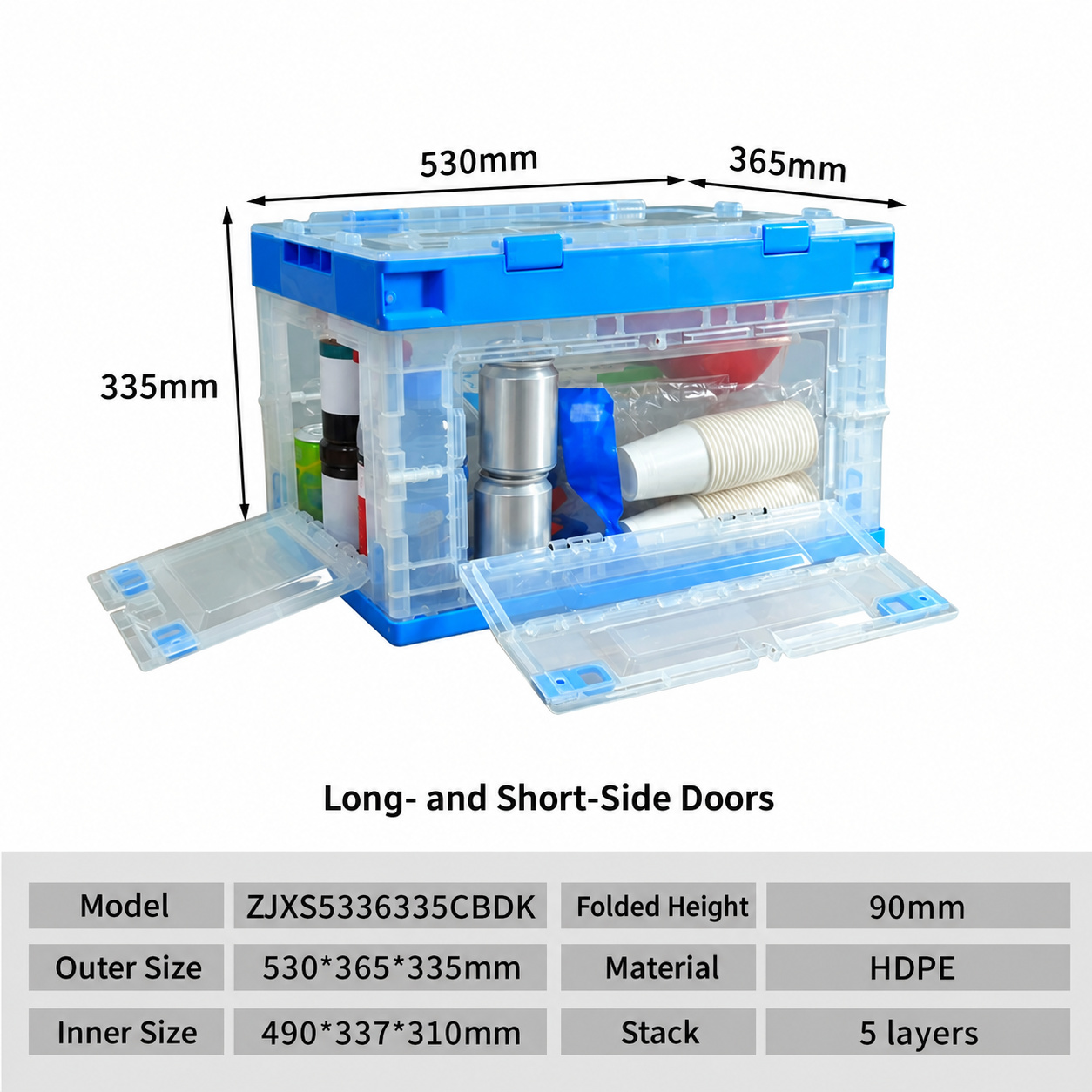

| ZJXS5336335CBDK | 530 × 365 × 335 | 490 × 337 × 310 | 90 | Lidded, long- and short-side doors |

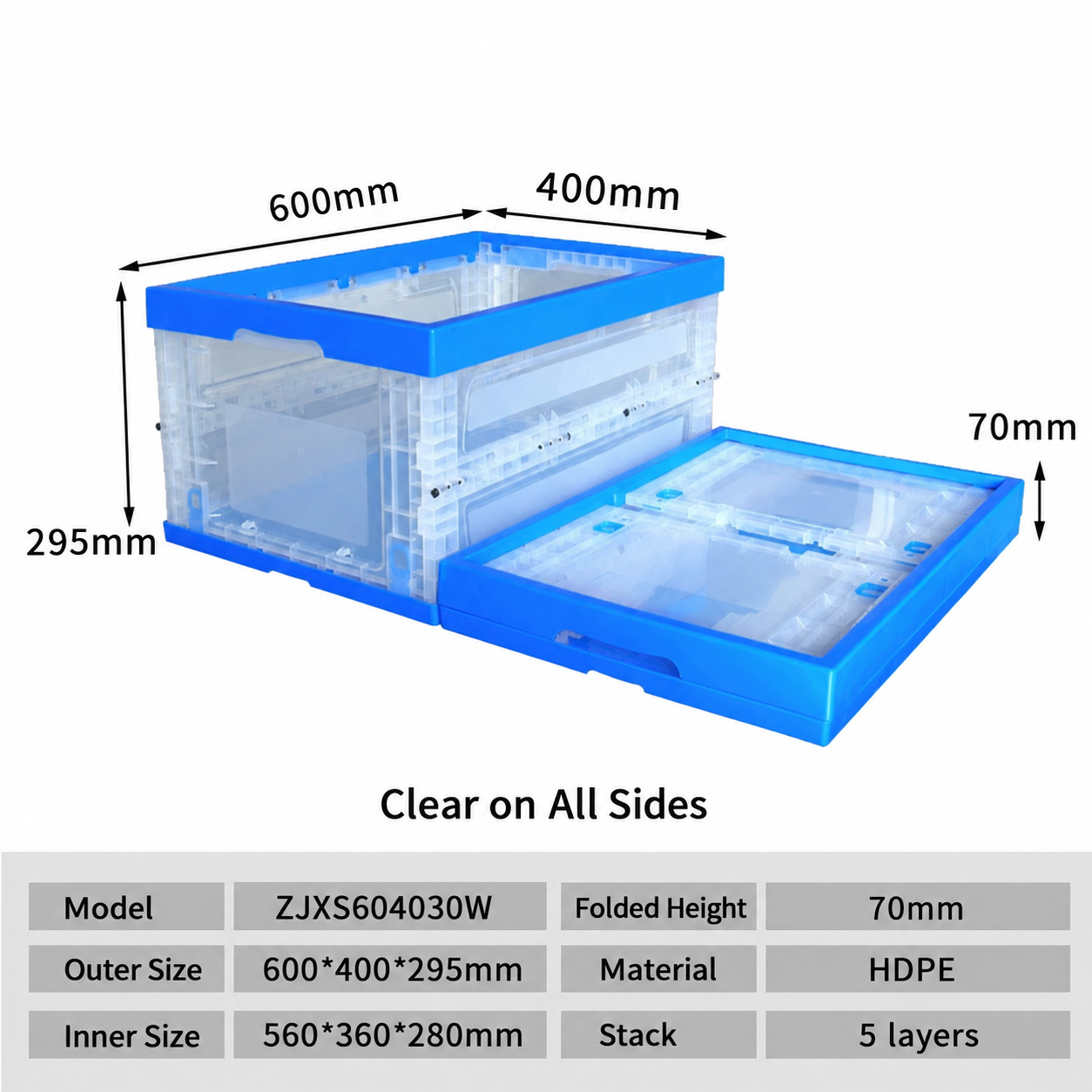

| ZJXS604030W | 600 × 400 × 295 | 560 × 360 × 280 | 70 | Clear on all sides |

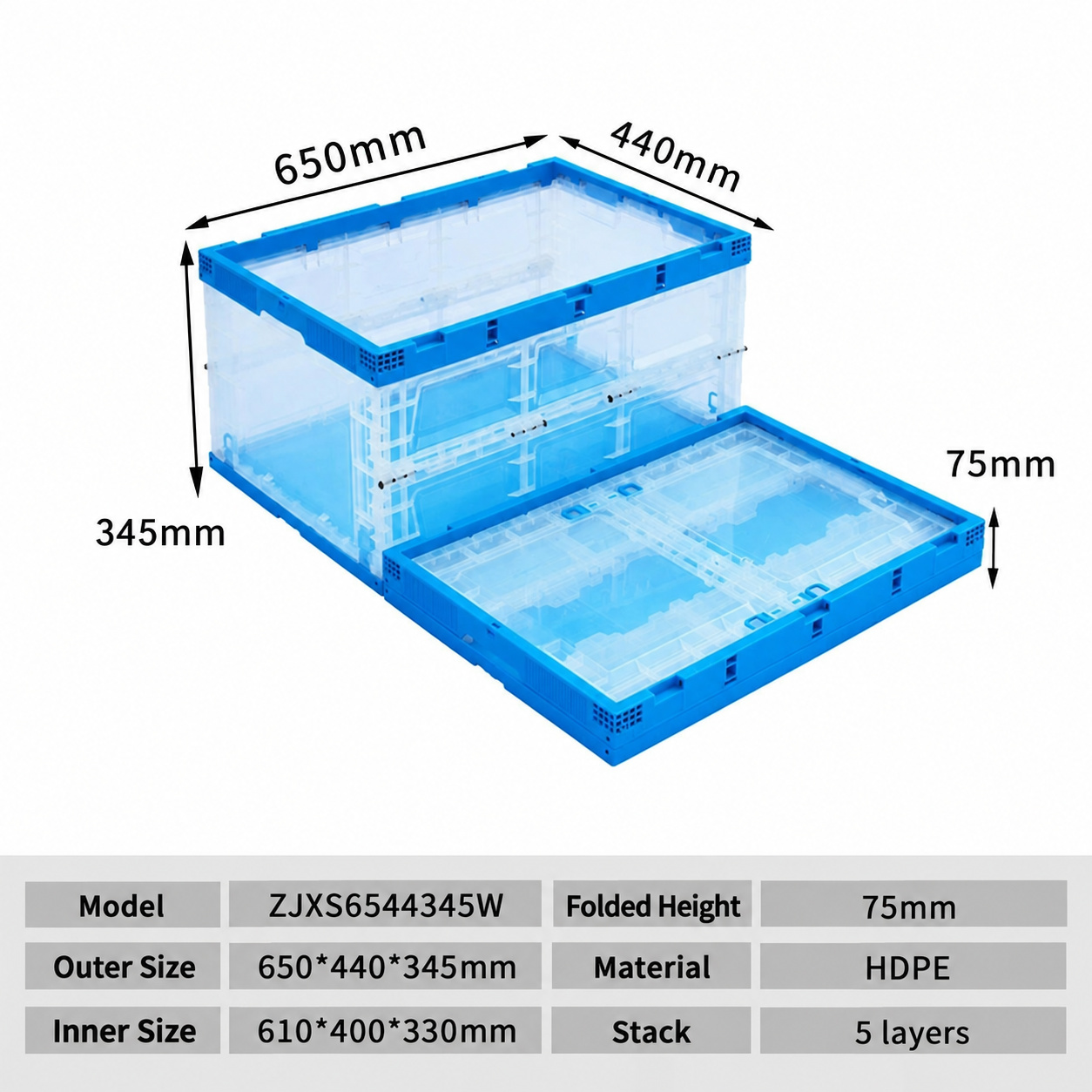

| ZJXS6544345W | 650 × 440 × 345 | 610 × 400 × 330 | 75 | Standard |

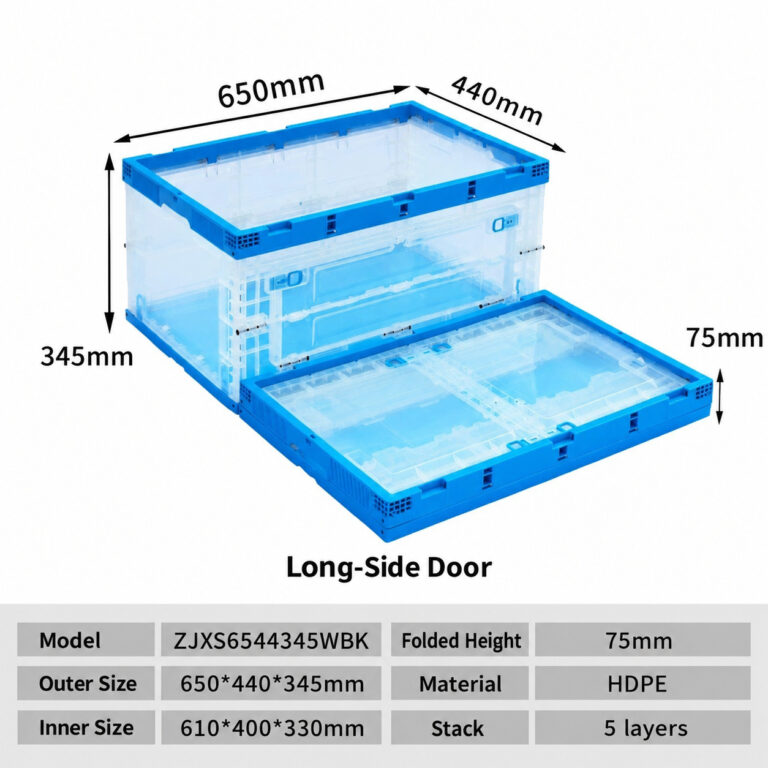

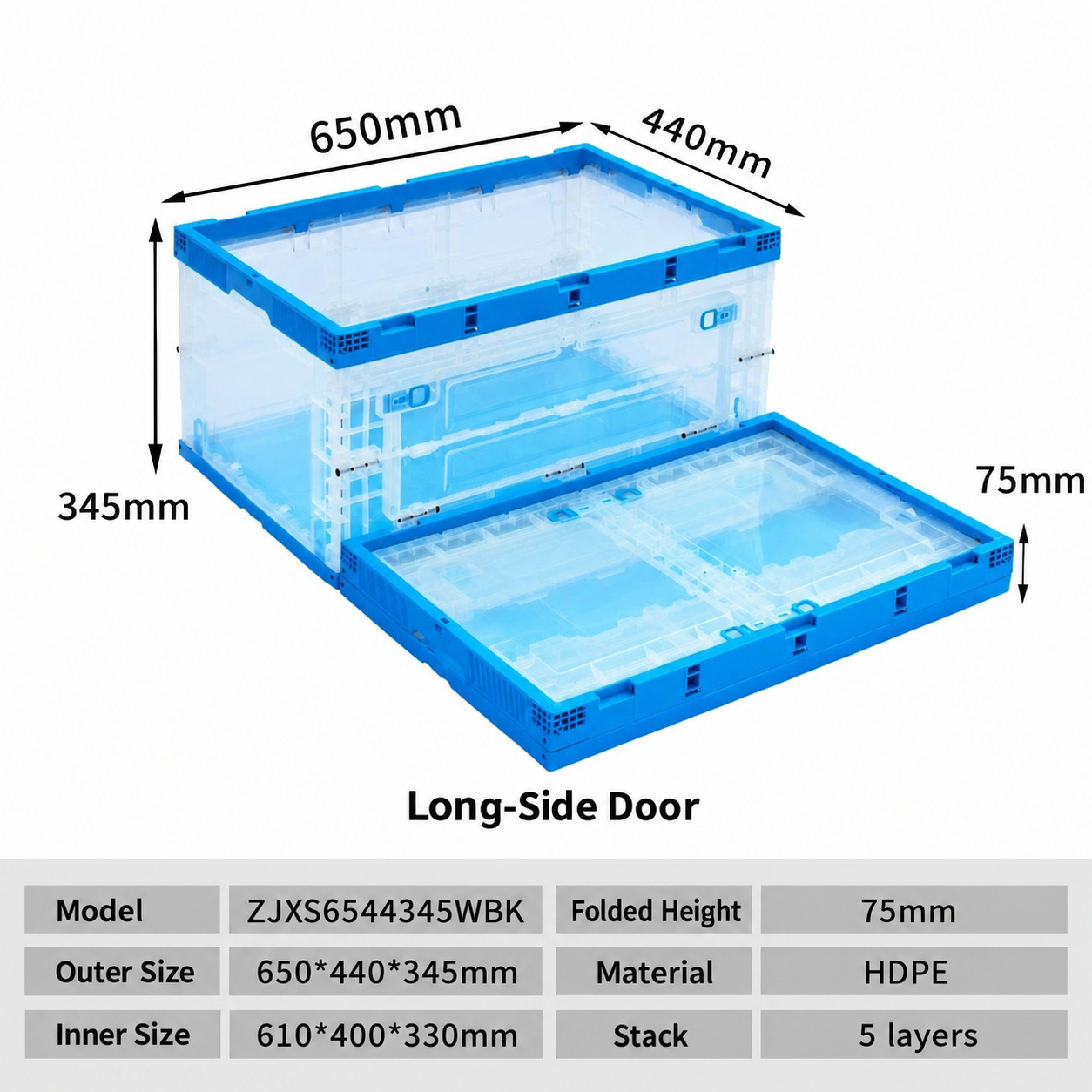

| ZJXS6544345WBK | 650 × 440 × 345 | 610 × 400 × 330 | 75 | Long-side door |

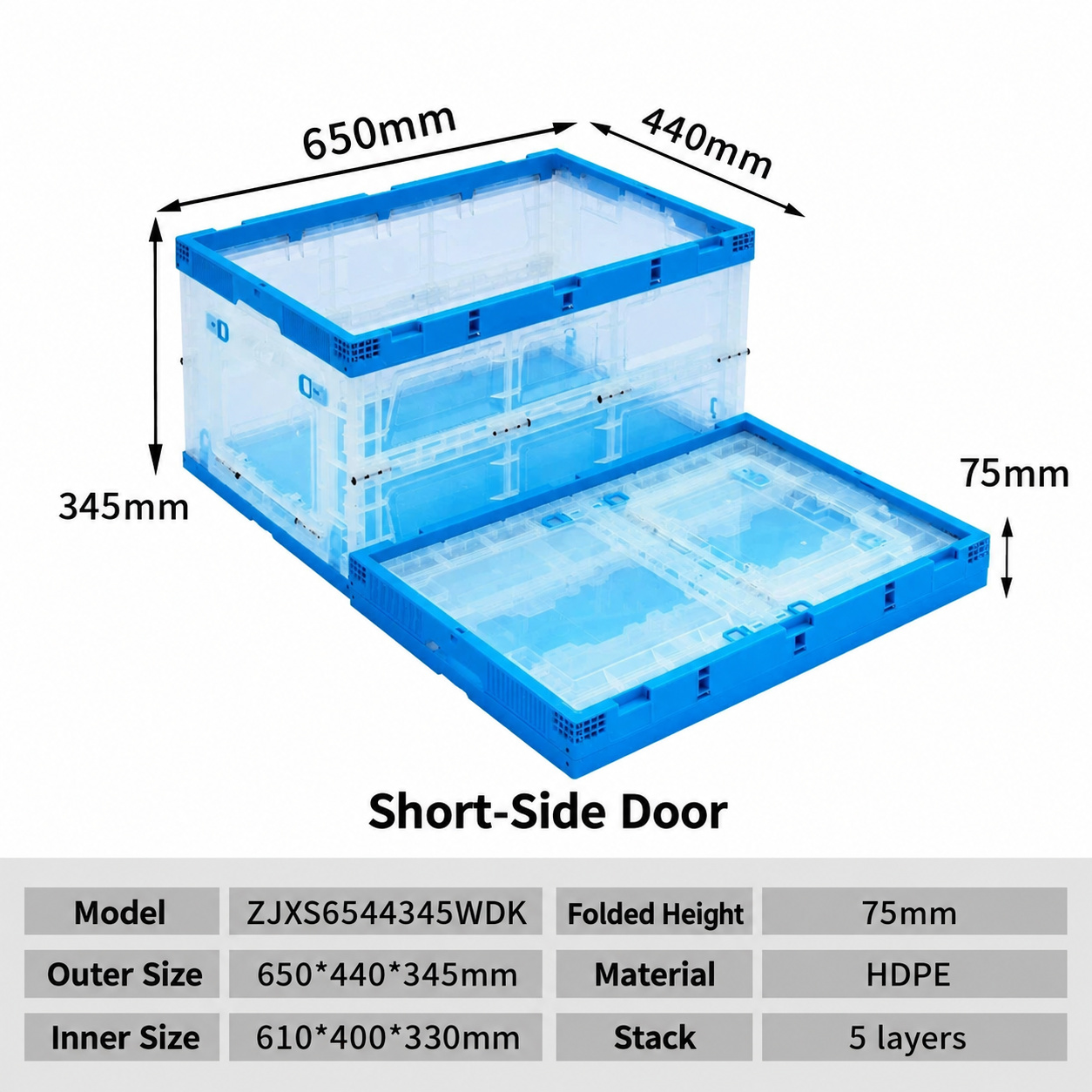

| ZJXS6544345WDK | 650 × 440 × 345 | 610 × 400 × 330 | 75 | Short-side door |

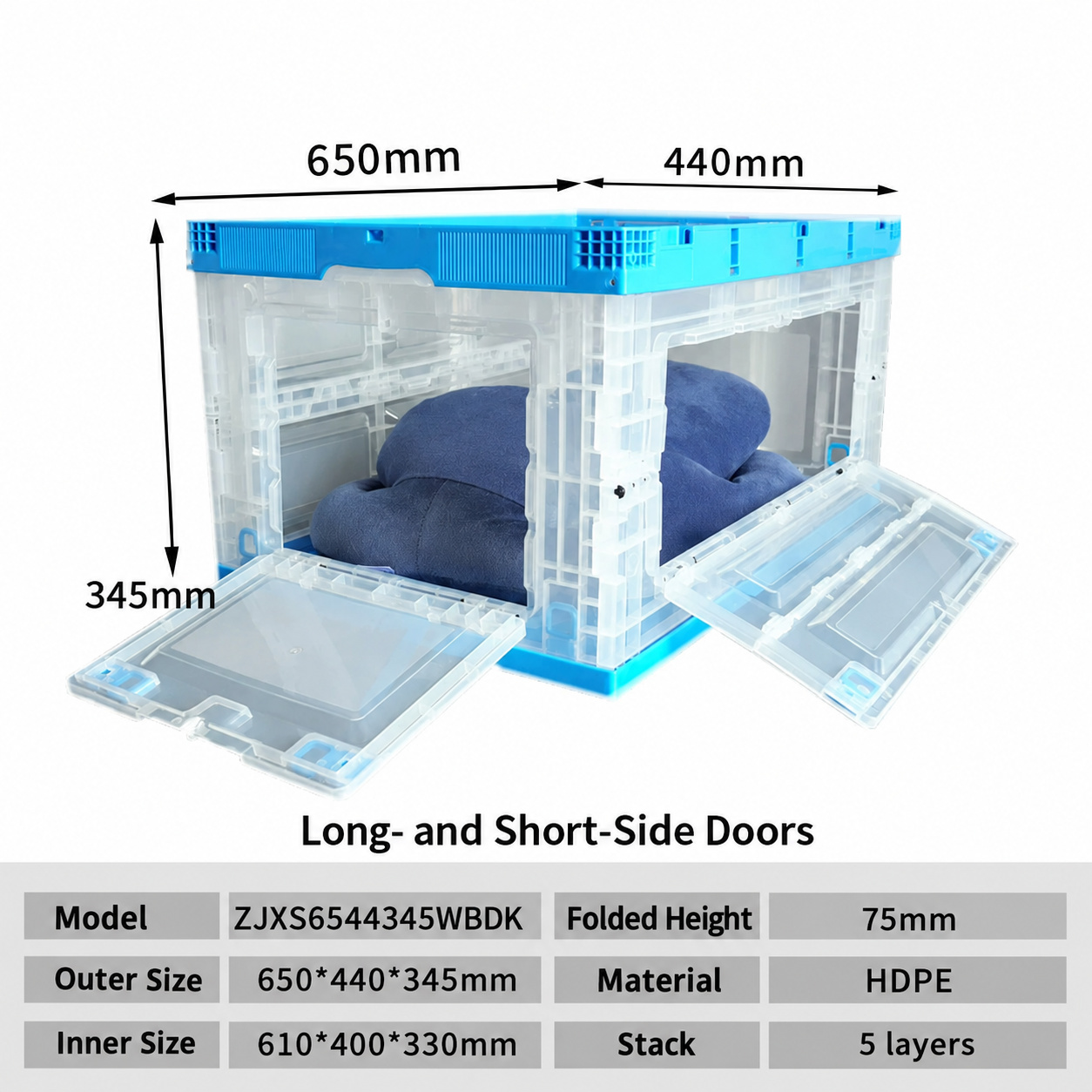

| ZJXS6544345WBDK | 650 × 440 × 345 | 610 × 400 × 330 | 75 | Long- and short-side doors |

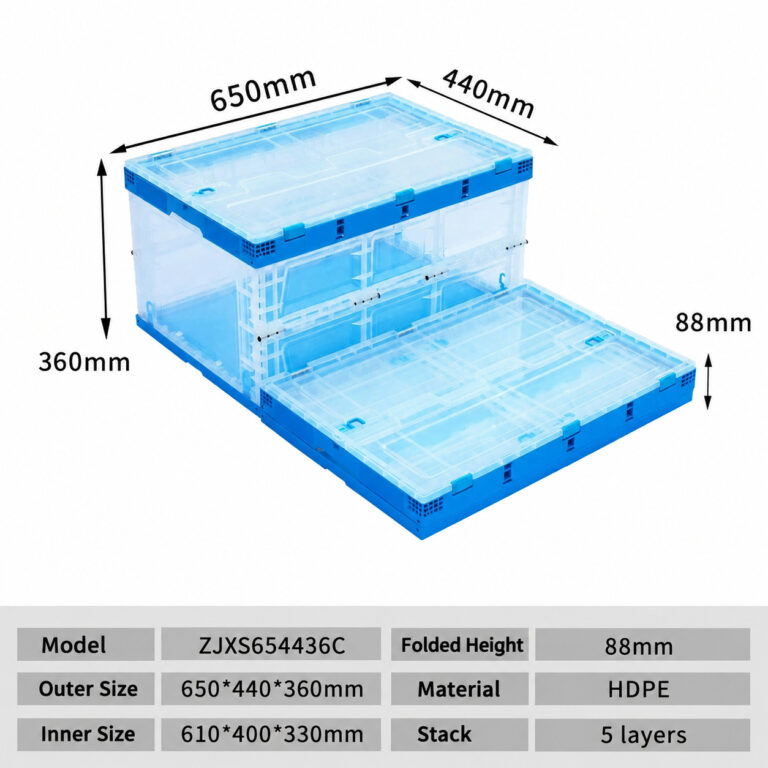

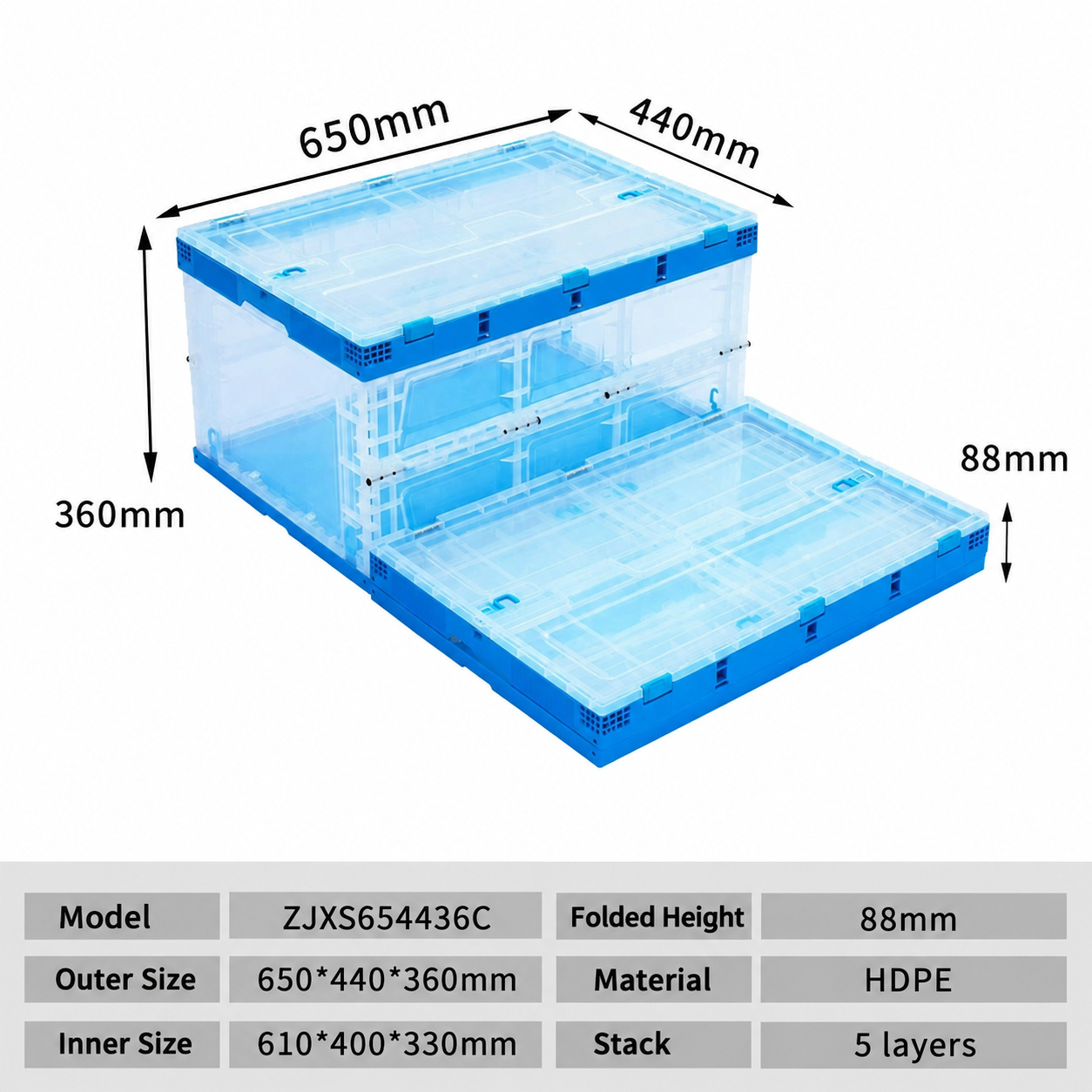

| ZJXS654436C | 650 × 440 × 360 | 610 × 400 × 330 | 88 | Lidded |
| ZJXS654436CBK | 650 × 440 × 360 | 610 × 400 × 330 | 88 | Lidded, long-side door |

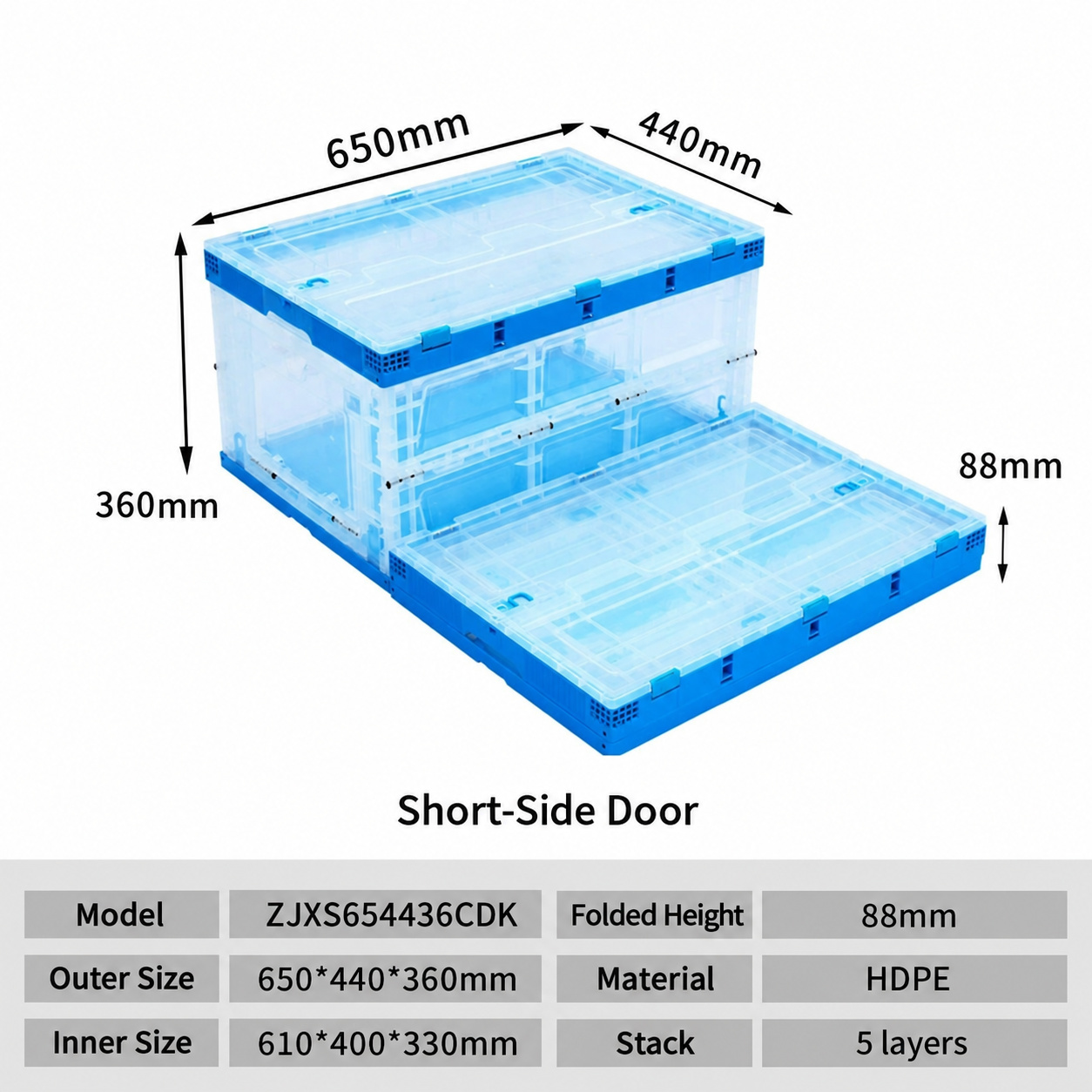

| ZJXS654436CDK | 650 × 440 × 360 | 610 × 400 × 330 | 88 | Lidded, short-side door |

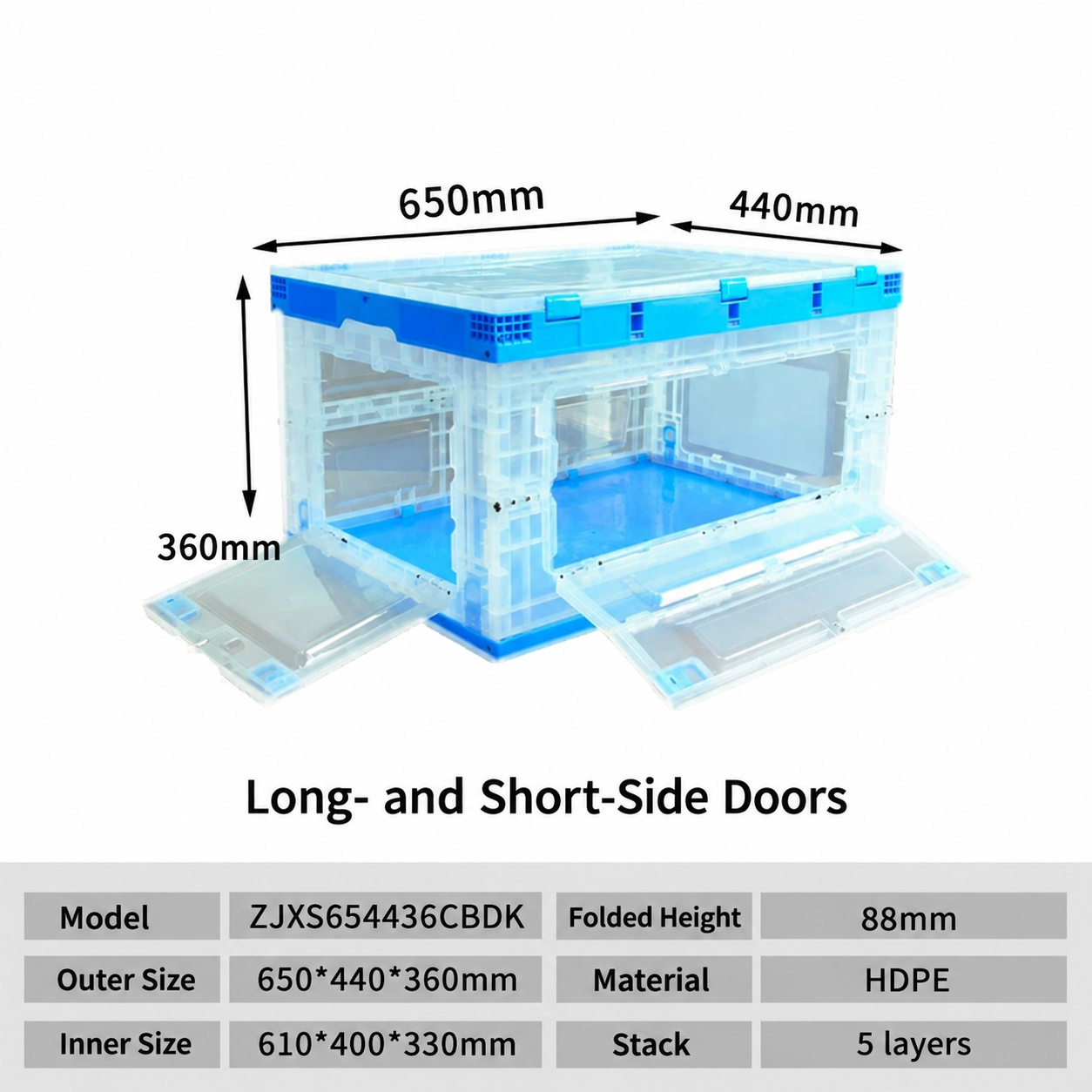

| ZJXS654436CBDK | 650 × 440 × 360 | 610 × 400 × 330 | 88 | Lidded, long- and short-side doors |
Product features and folding guide
Home storage for everyday essentials
These clear folding boxes also suit home organization. Use them to store clothing, towels, bedding, toys and everyday household items. Transparent panels help you find what you need, while side-access options make it easier to reach contents on shelves or in a stack. Fold empty boxes flat when they are not in use.
Request a wholesale quotation
Send the model or required dimensions, door and lid configuration, estimated quantity and destination. Let us know whether you need a matching wheeled dolly. We will confirm the available configuration, pricing and order terms for your project.
